PVC Conveyor Belt

PVC Conveyor Belt

PVC Conveyor Belt

Conveyor PVC Belts Manufacturing Range of HIC Universal


Food products transfer like vegetables, mineral oils, meat, other food-stuffs conveying gets safe to eat using PVC conveyor belt made in India by HIC Universal superseding FDA, BS 2890, DIN 22102, AS 1332 grade quality standards.



Width Sizes: 100 mm (= 4 inch) to 2800 mm (= 112 inch) belt
REGULAR standard conveyor belt widths sizes produced (mm): 600, 750, 900, 1000, 1200, and 1950

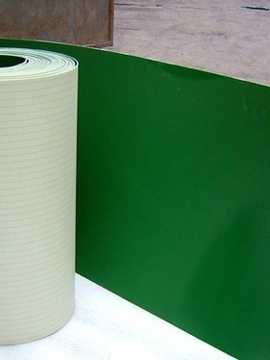

Thickness PVC-food quality White belts smooth surface finish produced 1.6, 2, 2.7, 3, 5, 6 mm
Thickness PVC Green or Black colour conveyor nitrile belting produced 1, 2, 3, 3.5, 4, 5 mm
Pebble Top PVC belt also being produced.
Bottom surface Food quality White or Green- Black colour PVC coated having total-belt thickness 3, 5, 6 mm
BARE Bottom polyester fabric surface PVC-belts having total-belt thickness 1.6, 2, 2.7 mm: bare bottom pvc-belt suggested where no bottom conveyor-roller support is available.
Rough Grip PVC-belt Top-PVC bottom bare surface having total-belt thickness 5 mm
Ribbed PVC-belt Top-PVC bottom bare surface having total-belt thickness 3.5 mm
PU belt FDA quality Top Polyurethane White Gloss bottom bare having total-belt thickness 1.6mm.
PLY Layers Polyester Mono-filament fabric pvc-belt 1, 2, 3 as per total thickness desired.
LENGTH in Open End Meters and Endless cold vulcanized double finger splices joints made.



Light Weight Stuffs Transfer HIC Conveyor PVC and PU Belt

                                Classified under HS Code 3926

2 ply white PVC belt, thickness 2 mm
2-ply white PVC belt, thickness 2.6 mm, cross-stiff
2 layers white PVC belt, thickness 3.1 mm, underside negative pyramid profile (NP)
3-ply white PVC belt, thickness 4.2 mm, cross-stiff
2-ply blue-green PVC belt, thickness 2 mm, antistatic
2-ply blue-green PVC belt, thickness 2.6 mm, rigid, antistatic
2 ply green PVC belt, thickness 2.7 mm, underside negative pyramid profile (NP)
3-ply green PVC belt, thickness 4 mm, cross-stiff
3 layers green PVC belt, thickness 4.2 mm, underside negative pyramid profile (NP), cross-stiff
2-ply grey PVC belt, thickness 2.7 mm, top grip structure "minigrip"
2 layers green PVC belt, thickness 5.4 mm, top grip structure
2 ply green PVC belt, thickness 3 mm, top grip structure "longitudinal ribs"
